Fermentation flavours


Fermenting in Loch Lomond distillery
Whisky wort fermentation produces ethanol, but also a variety of important flavours. Yeasts produce higher (fusel) alcohols and organic acids, which together form esters. Additionally ketones, sulphur compounds and phenols are formed. Whisky fermentation is quite similar to beer fermentation, but there are couple of important differences; the wort is not boiled, the distiller's yeast is usually propagated aerobically and the fermentations are usually not aeriated or temperature controlled (except the starting temperature). Unboiled wort allows the enzymes to continue their work and break down the oligosaccharides to increase the alcohol yield, but it also enables contamination with bacteriae and wild yeasts. If the yeast used is propagated aerobically, it is faster to start the fermentation and contains more sterols and fatty acids and thus the wort needs less oxidation or rousing.

Yeasts use simple sugars for their growth and energy metabolism. Simplified; when the yeast has oxygen, it produces water and CO from glucose, but in anaerobic conditions it turns glucose into ethanol and CO or alternatively glycerol. To reproduce, the yeast needs fatty acids, sterols and amino acids for its membranes and the organelles inside the cell. Oxygen is often needed in the production of these building materials.

When yeast is pitched into the wort, it secures its energy reserves and if there are enough nutritients, it starts to reproduce by budding. The beefing up-phase is called the lag phase, and it is shorter if the yeast has been aerobically grown as the cells are usually full of nutritients already. The budding phase is called the log phase or the exponential phase, during which yeasts reproduce usually 3-4 times increasing the cell population about ten-fold. As the cells form new organelles and cell membranes, they produce a variety of different organic acids, fats and sterols including various intermediate products, some of which leak out of the cell into the wort. After that the nutritients and oxygen fall short and the cells do not reproduce, but try to produce sufficient energy to survive from the sugars, this is called the stationary phase. As the cells start to die or drop out from the fermentation, lactic acid bacteriae start to grow on the wort producing flavours typical of their metabolism, such as lactic acid and several lactones.

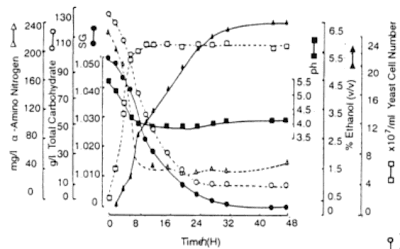

Yeast growth in whisky fermentation (Ramsay & Berry 1983)

The amount of higher alcohols depends on the yeast growth; basically the more the yeast grows, the more higher alcohols are formed. Therefore aeriation of the wort, high nitrogen, and high temperature promote fusel alcohol production. Ale strains usually produce more fusel alcohols than lager strains, partly because of the higher fermentation temperatures. Fusel alcohols themselves are not a desired flavour in the wort - producing usually a sharp, solventy notes - but together with acids they form esters, which are important and desired flavour compounds in whisky as they produce various fruity and flowery notes.
Amino acidFusel alcohol
LeucineIsoamyl alcohol
ValineIsobutanol
IsoleucineActive amyl alcohol
Phenyl2-phenylethanol
Tyrosinep-hydroxyphenylethanol / tyrosol
TryptophanTryptophol
MethionineMethionol
 Table1. Aminoacids metabolise into different fusel alcohols


Ester formation depends on the amount of fusel alcohols and organic acids in the wort, but also on the activity of alcohol acetyltranferase enzymes (ATAase I and II), which in turn depends greatly on the yeast strain. Esters in the fermentation can be classified into two groups: The acetate esters (acetate+alcohol) and the ethyl esters (ethanol+fatty acid). The acetate esters are usually formed in greater amounts, but the ethyl esters can be very aromatic even in low concentrations. Common descriptors for the aromas of esters are listed in the table below. The short chain fatty acid esters (C6, C8) are formed early in the fermentation, the medium chain esters (C10,C12) quite evenly throughout the fermentation and the longer chain esters (C16) mostly at the cell-death phase. Increased cell growth usually results in lower levels of esters, due to lower levels of free fatty acids in the wort, as fats are used to build cell membranes. Organic acids are formed throughout the fermentation and at high levels they produce notes of vinegar, vomit and barnyard. The right proportion of fusel alcohols and free fatty acids or acetate is crucial when producing estery wort and avoiding the solventy off-notes from the excess alcohols and on the other hand the rancid aromas from the excess free fatty acids. An estery, fruity wort can be produced with warm long fermentations, high original gravities, high pitching rates with aerobically grown yeast and low nitrogen barley. Increased glucose levels tend to produce more short chain esters, for example isoamyl acetate with a typical banana aroma. High fermentation temperatures usually produce more acetate esters with mainly fruity aromas, but also medium-long chain ethyl esters, which can give an oily and waxy texture to the flavour.



Ester Name
Odor or occurrence
Allyl hexanoate
pineapple
Benzyl acetate
pear, strawberry, jasmine
Bornyl acetate
pine
Butyl butyrate
pineapple
Ethyl acetate
nail polish remover, model paint, model airplane glue
Ethyl butyrate
banana, pineapple, strawberry
Ethyl hexanoate
pineapple, waxy-green banana
Ethyl cinnamate
cinnamon
Ethyl formate
lemon, rum, strawberry
Ethyl heptanoate
apricot, cherry, grape, raspberry
Ethyl isovalerate
apple
Ethyl lactate
butter, cream
Ethyl nonanoate
grape
Ethyl pentanoate
apple
Geranyl acetate
geranium
Geranyl butyrate
cherry
Geranyl pentanoate
apple
Isobutyl acetate
cherry, raspberry, strawberry
Isobutyl formate
raspberry
Isoamyl acetate
pear, banana (flavoring in Pear drops)
Isopropyl acetate
fruity
Linalyl acetate
lavender, sage
Linalyl butyrate
peach
Linalyl formate
apple, peach
Methyl acetate
glue
Methyl anthranilate
grape, jasmine
Methyl benzoate
fruity, ylang ylang, feijoa
Methyl butyrate (methyl butanoate)
pineapple, apple, strawberry
Methyl cinnamate
strawberry
Methyl pentanoate (methyl valerate)
flowery
Methyl phenylacetate
honey
Methyl salicylate (oil of wintergreen)
Modern root beer, wintergreen
Nonyl caprylate
orange
Octyl acetate
fruity-orange
Octyl butyrate
parsnip
Amyl acetate (pentyl acetate)
apple, banana
Pentyl butyrate (amyl butyrate)
apricot, pear, pineapple
Pentyl hexanoate (amyl caproate)
apple, pineapple
Pentyl pentanoate (amyl valerate)
apple
Propyl acetate
pear
Propyl hexanoate
blackberry, pineapple, cheese, wine
Propyl isobutyrate
rum
Terpenyl butyrate
cherry
 Table2. Common esters and their aromas.
Diacetyl is an important flavour compound producing slick, buttery mouthfeel from concentrations of about 1ppm and at higher concentrations butterscotch or even cheesy flavours, and is usually considered as an off-note. It arises from the nitrogen metabolism during the exponential phase as the cells convert aminonoacids into ketones (such as diacetyl) and back to different aminoacids, but in the late stationary and the cell-death phases the cells use ketones in their metabolism as the sugars are running low. Brewers and distillers usually allow a diacetyl-rest period after the active fermentation to clear the wort of excess ketones. Too short fermentation time usually results in excess diacetyl. Heating, for example during distilling, increases the formation of diacetyl from other ketones. Diacetyl is quite volatile with a boiling point of 88C and very hard to remove from the spirit even with column distillation.

Sulphur mining in an active volcano, Java (from zmescience.com)
Yeast metabolism produces many sulphur compounds, mostly sulphur dioxide (SO, burnt matches). SO is easily reduced to hydrogen sulphide (HS, rotten eggs), which is very volatile and easily carried out of the wort if sufficient CO is formed. Slow fermentations due to for example low temperature, low pitching rate, contamination or unhealthy yeast could fail to produce enough CO, which leads to high levels of HS in the wort. Some highly aromatic sulphur compounds such as dimethylsulphide (DMS) and  -trisulphide (DMTS), dimethylsulphoxide (DMSO), S-methyl methionine (SMM), dithiapenthyls (DTPOH, DTPA) and various mercaptans originate mostly from the malt, but are metabolised by yeast and their concentrations can be either elevated or decreased during fermentation. Methione and cysteine are amino acids with a sulphur chain, which can be broken down during cell growth and energy metabolism. Starved cells can also turn into catabolic state (autophagosytosis), in which they break down their cell organnelles (and amino acids in the process) to produce energy, and this produces excess sulphur. This is probably why anaerobically grown brewer's yeast together with distiller's yeast produces more sulphur compounds than either one used alone. Starved brewer's yeast (cropped from the brewery, not from an aerobic propagation or a lab) produces over twice as much aromatic sulphur compounds than fresh yeast of the same strain. Distiller's yeast used alone produces slightly less aromatic sulphur than a common ale yeast, probably because of its better nutritional state. The aromatic sulphur compounds are not necessarily off-notes, but are in fact needed for full-bodied and complex aromas (in the right proportions, of course).

Phenols in whisky are mostly derived from peat burnt in the maltings, but some very flavour-active phenol compounds can be produced  by yeasts. Wild yeasts produce significant amounts of 4-vinyl guaiacol, which has a very potent phenolic aroma. Phenolic note has been considered an off-note in brewing and therefore the brewers have usually chosen strains that do not have a functioning gene for 4-vinyl guaiacol-production, exceptions include most hefeweisen and rauchbier yeasts and of course the lambics brewed with wild yeasts. Apparently also the commercial distiller's yeasts are lacking the "phenolic off-flavour" genes.

The picture below sums the simple reactions involved in the flavour formation during alcoholic fermentation.
Flavour formation from alcoholic fermentations. (Ramsay 1982)
References and further reading:
Bryce JH et al (ed). Distilled spirits: Production, technology and innovation. Nottingham Univ Press 2008
Piggott JR et al (ed). The science and technology of whiskies. Longman 1989
Querol A, Fleet GH (ed). The Yeast Handbook. Springer-Verlag Berlin 2006
Russell I (ed). Whisky, technology, production and marketing. Academic Press 2003
Walker GM, Hughes PS (ed). Distilled spirits, new horizons: energy, environment and enlightenment. Nottingham Univ Press, 2010
White C, Zainasheff J. Yeast. Brewers Association 2010
